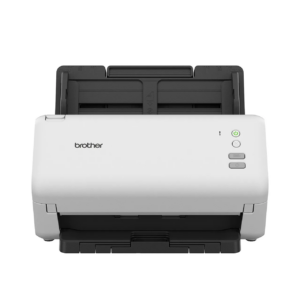

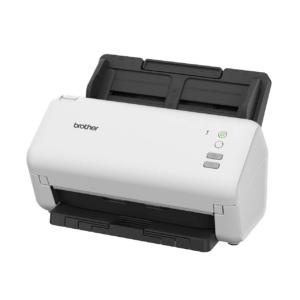

Description Brother ADS-3100 High-Speed Desktop Scanner Key Features High-Speed Scanning: Up to 40 ppm (single-sided) and 80 ipm (double-sided) in color and mono. Advanced Duplex Scanning: Scans both sides simultaneously. Automatic Document Feeder (ADF): 60-sheet capacity for uninterrupted scanning. Scan Performance Resolution: Optical: Up to 600 x 600 dpi Interpolated: Up to 1200 x 1200 dpi Speed: Single-sided: Up to 40 ppm (A4) Duplex: Up to 80 ipm (A4) Daily Duty Cycle: Up to 6,000 pages Media Handling: Size: 50.8–215.9 mm (width), 50.8–355.6 mm (length), up to 5000 mm (Long Paper Mode). Weight: 40–200 gsm Plastic Cards: Embossed cards up to 1.32 mm thick Image Optimization Features Processing Tools: Auto Deskew, Auto Image Rotation, Blank Page Removal Edge Fill, Tear Fill, Punch Hole Removal Vertical Streak and Moiré Reduction Color Dropout, B/W Threshold Adjustment, Noise Reduction Supported File Formats: PDF (single/multi-page, PDF/A-1b) JPEG TIFF Connectivity Interfaces: USB 3.0 for fast transfers USB Host for PC-free scanning Mobile Scanning: Compatible with Brother Mobile Connect app Software Suite Windows: Brother ScanEssentials Lite, Kofax PaperPort, Kofax Power PDF, NewSoft Presto! BizCard MacOS: Brother iPrint&Scan, ICA, TWAIN, NewSoft Presto! BizCard Linux: SANE driver support Ease of Use Control Panel: Simple LED indicators and four control keys Fast Wake-Up Time: Approx. 1 second from sleep Direct Scan: Save directly to USB drives Environmental Features Power Consumption: Scanning: 23W Ready Mode: 5.4W Sleep Mode: 1.4W Power Off: 0.1W Operating Environment: Temperature: 5°C–35°C (41°F–95°F) Humidity: 20%–80% Physical Specifications Dimensions: Without Carton: 299.5 x 215.9 x 190.5 mm With Carton: 391 x 243 x 320 mm Weight: Without Carton: 2.6 kg With Carton: 3.31 kg Included in the Box Brother ADS-3100 Scanner Detachable ADF Power Supply Cord and Adapter USB Cable Quick Setup Guide Product Safety Guide Optional Accessories A3 Carrier Sheet (CS-A3301): Supports up to 500 uses. Roller Kit (PRK-A3001): Supports up to 100,000 sheets. Warranty 1-Year Return-to-Base Warranty Frequently Asked Questions (FAQs) 1. What is the scan speed? 40 ppm (single-sided) and 80 ipm (double-sided). 2. What media can it scan? Plain paper (40–200 gsm), plastic cards (up to 1.32 mm), business cards, and long documents (up to 5000 mm). 3. Does it support duplex scanning? Yes, it scans both sides in a single pass. 4. Supported file formats? PDF, PDF/A-1b, JPEG, and TIFF. 5. What is the resolution? Optical: 600 x 600 dpi; Interpolated: 1200 x 1200 dpi. 6. Can I scan directly to USB? Yes, without a PC. 7. Is mobile scanning supported? Yes, via Brother Mobile Connect app. 8. Connectivity options? USB 3.0 and USB Host. 9. Included software? Brother ScanEssentials Lite, Kofax PaperPort, Kofax Power PDF, and more. 10. Daily duty cycle? Up to 6,000 pages. 11. Supported operating systems? Windows, macOS, and Linux. 12. Power consumption? Scanning: 23W; Ready Mode: 5.4W; Sleep: 1.4W; Off: 0.1W. 13. What’s included in the box? Scanner, ADF, cables, and guides. 14. Optional accessories? A3 Carrier Sheet (CS-A3301) and Roller Kit (PRK-A3001).
