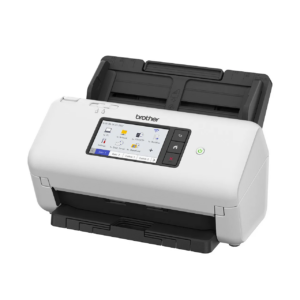

Description Brother ADS-4700W Wireless Document Scanner General Features Model: Brother ADS-4700W Form Factor: Sheet-fed desktop document scanner Scanner Type: Dual CIS (Contact Image Sensor) with LED Array Light Source Control Panel: 10.9 cm (4.3″) Color Touchscreen Display Memory: 512MB Scanning Performance Scan Speed (A4): Single-sided: Up to 40 pages per minute (ppm) Double-sided: Up to 80 images per minute (ipm) Daily Duty Cycle: Up to 6,000 pages Optical Resolution: Up to 600 x 600 dpi Interpolated Resolution: Up to 1200 x 1200 dpi Color Depth: Internal: 48-bit External: 24-bit Grayscale Levels: 256 levels (8-bit) Wake-up Time: Approx. 1 second Media Handling Automatic Document Feeder (ADF): Capacity: 80 sheets Media Types Supported: Plain paper, thin paper, thick paper, recycled paper, business cards, plastic cards Media Sizes: Width: 50.8mm to 215.9mm Height: 50.8mm to 355.6mm Long Paper: Up to 5000mm Paper Weight: 25 – 413 gsm Plastic Card Thickness: Embossed: Up to 1.32mm Non-embossed: Up to 1.10mm File Formats Supported Scan File Formats: PDF (Single, Multi, PDF/A-1b) JPEG TIFF (Single, Multi-page) Connectivity Options Interfaces: USB 3.0 SuperSpeed USB Host (Scan directly to USB drives) Ethernet (Network) Wi-Fi (802.11b/g/n) Wi-Fi Direct Mobile Scanning: Compatible with Brother Mobile Connect Advanced Features Duplex Scanning: Scans both sides of a document simultaneously. Touchscreen Display: 10.9 cm color display for intuitive control and customization. Barcode Detection: Organize and classify documents efficiently. Advanced Image Processing: Auto Deskew Detect End of Page Auto Image Rotation Edge Fill and Tear Fill Blank Page Removal Vertical Streak Reduction Moiré Reduction Noise Reduction Punch Hole Removal Remove Ruled Lines Software Included Software: Brother ScanEssentials Kofax PaperPort & Power PDF NewSoft Presto! BizCard Supported Drivers: TWAIN, WIA, ICA, SANE Compatible Operating Systems: Windows 7 SP1 and above macOS 10.14 and above Linux (via SANE) Dimensions and Weight Scanner Dimensions (WxDxH): 299.5 x 215.9 x 190.5 mm Weight: 2.7 kg Power and Environmental Power Requirements: AC: 100-240V, 50/60 Hz DC: 24V, 1.9A Power Consumption: Scanning: 23W Ready Mode: 5.4W Sleep Mode: 1.4W Power Off: 0.1W Operating Environment: Temperature: 5°C to 35°C (41°F to 95°F) Humidity: 20% to 80% Accessories and Consumables In the Box: ADS-4700W Scanner Power Supply Cord AC Adapter USB Cable Quick Setup Guide Product Safety Guide Optional Accessories: A3 Carrier Sheet (CS-A3301) – Up to 500 uses Roller Kit (PRK-A3001) – Supports 100,000 sheets Key Highlights Fast and versatile scanning for a variety of media, including plastic cards and long documents. Comprehensive connectivity options, including Wi-Fi and Ethernet. Intuitive operation with a 10.9 cm touchscreen display. Advanced workflow optimization through bundled software like Kofax and Brother ScanEssentials. Ideal for high-volume business environments with its 6,000-page daily duty cycle.
